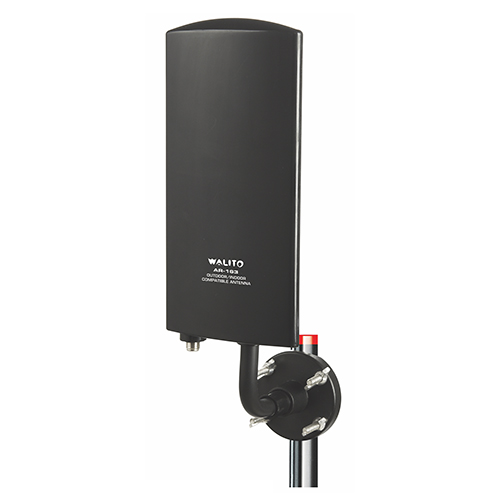

Digital Indoor/Outdoor TV Antenna

ModelAR-163

Size100*55*200mm

Frequency170-790MHz

Antenna gain25dB

Impedance75Ω

Power SupplyDC5V/50mA

Box size150*73*270mm

Measurement770*320*285mm(20pcs)

40HQ19980pcs

20GP8280pcs

Product Description

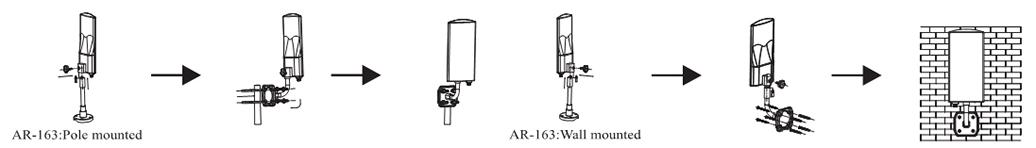

Installation Instruction

Installation-Instruction-n

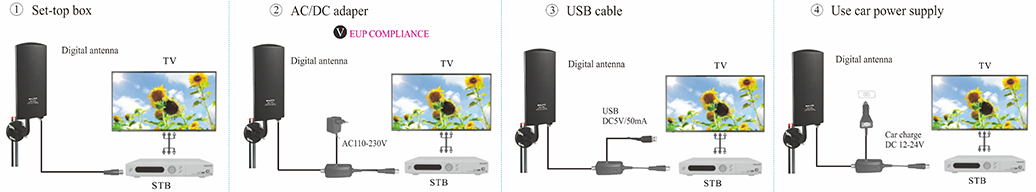

Product wiring diagram (Four Kinds of power options ①or②or③or④)

Product-wiring-diagram



Product Features

- SMD technology
- Minimum interference
- Power by STB box or extern adaptor
- Built-in high gain and low nosie head amplifier
- compact design,shine black color
- Good reception for both digital and analog TV signal
- Suitable for HDTV of various television standard,such as DVB-T,DVB-T2,ISDB-T,DMB-T,ATSC and DAB/FM
